About Hilman

Engineering Lifting Excellence

Hilman is a leading manufacturer and supplier of industrial lifting and material handling solutions, delivering European-style engineering precision to industries across India and global markets. Specializing in Electric Chain Hoists, Electric Wire Rope Hoists, and Industrial Wireless Remote Control Systems, Hilman designs products that meet the highest standards of safety, durability, and operational efficiency.

Each Hilman hoist is engineered using premium-grade components, heavy-duty motors, precision gear systems, and advanced safety mechanisms to ensure smooth lifting, long service life, and minimal maintenance. From compact electric chain hoists used in workshops to high-capacity wire rope hoists capable of lifting up to 80 tons, Hilman offers flexible configurations for diverse industrial applications.

Hilman integrates critical safety features such as overload protection, precision geared limit switches, thermal motor protection, inverter-controlled movements, and IP-rated electrical systems, ensuring reliable performance even in harsh industrial environments. The company’s industrial wireless and joystick remote control systems further enhance operational safety by allowing accurate load handling from a safe working distance.

With a strong engineering foundation, strict quality control processes, and customer-centric approach, Hilman continues to support manufacturing plants, warehouses, logistics hubs, fabrication units, and heavy industries with dependable, high-performance material handling solutions.

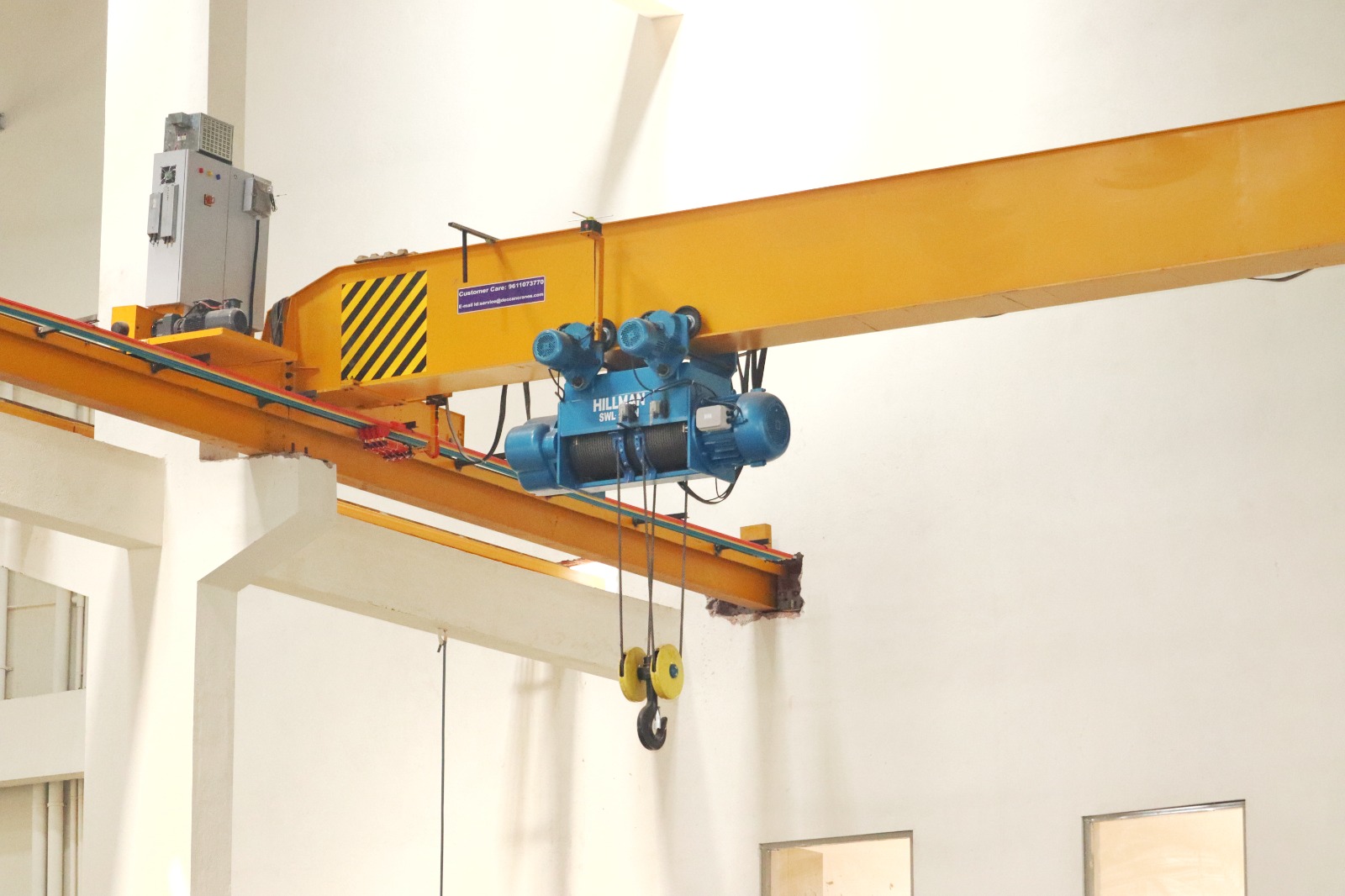

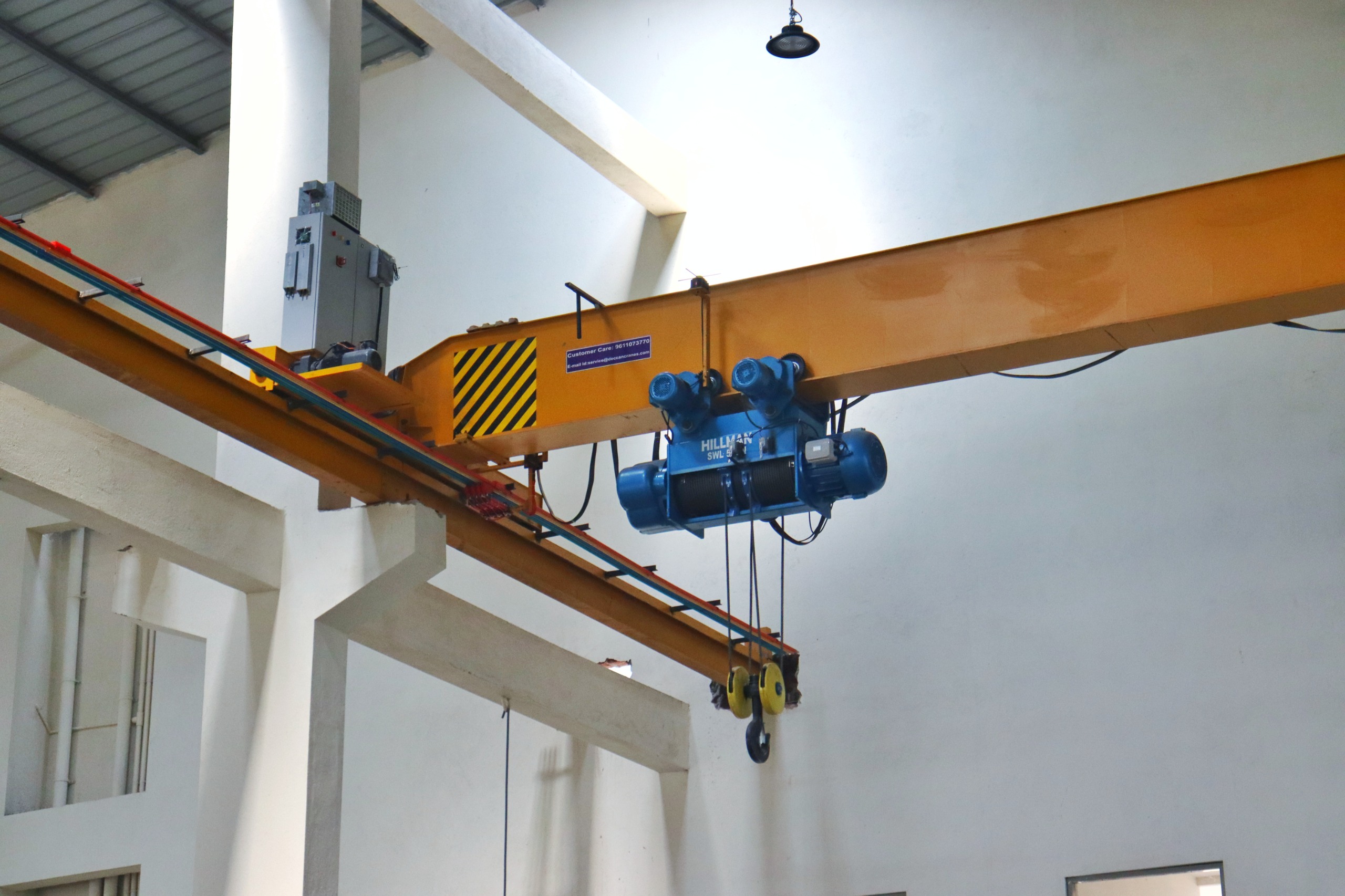

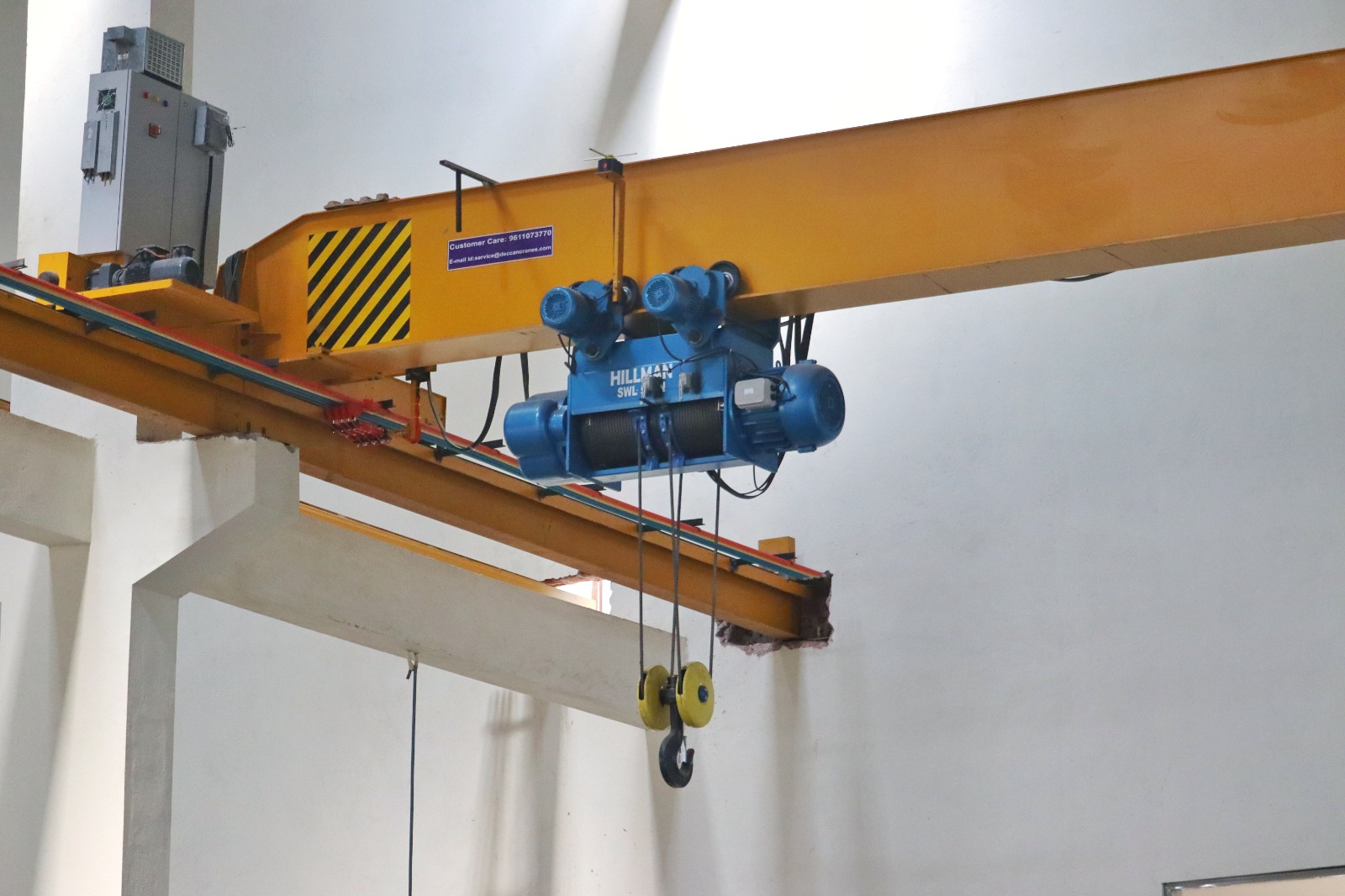

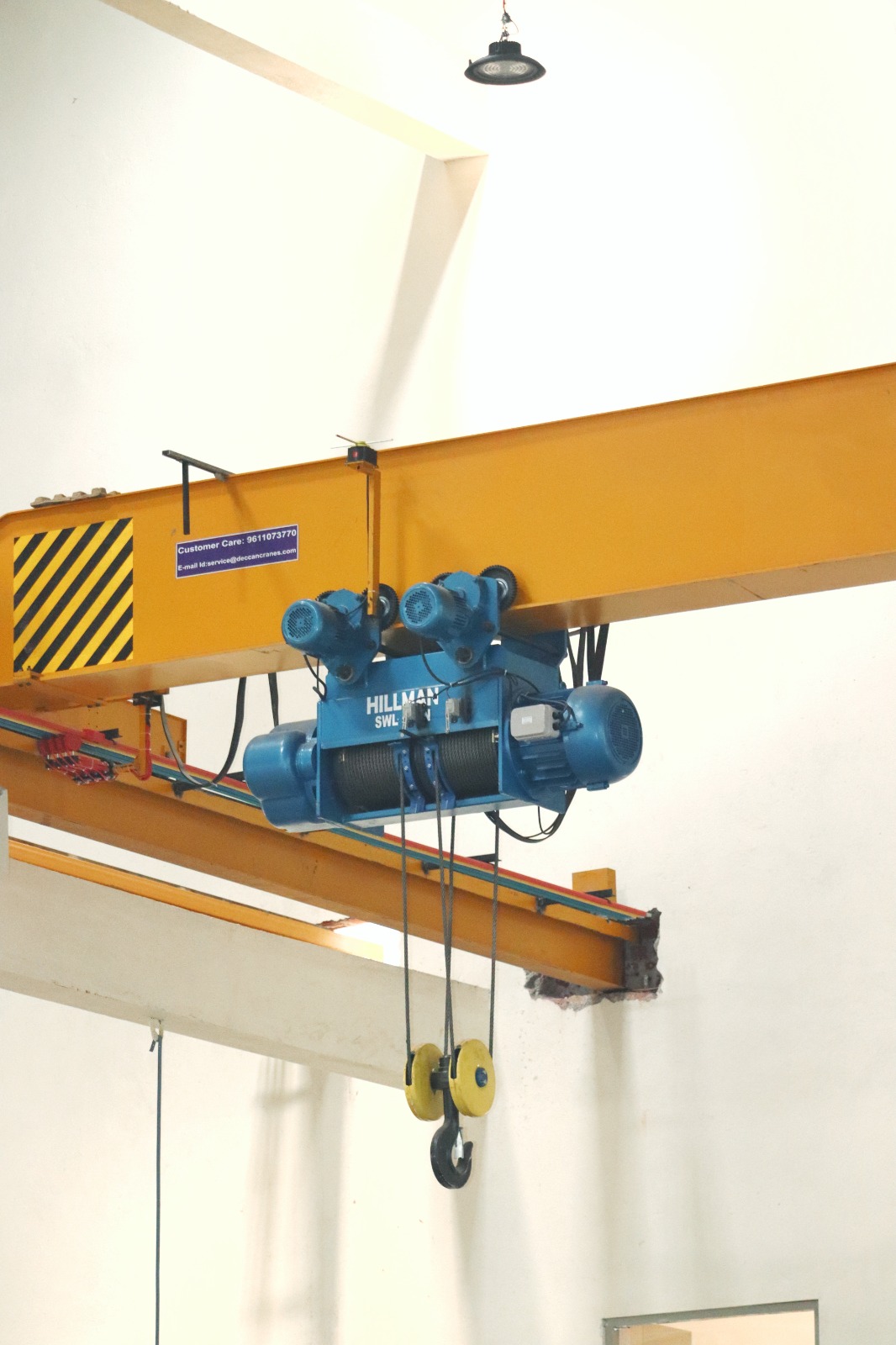

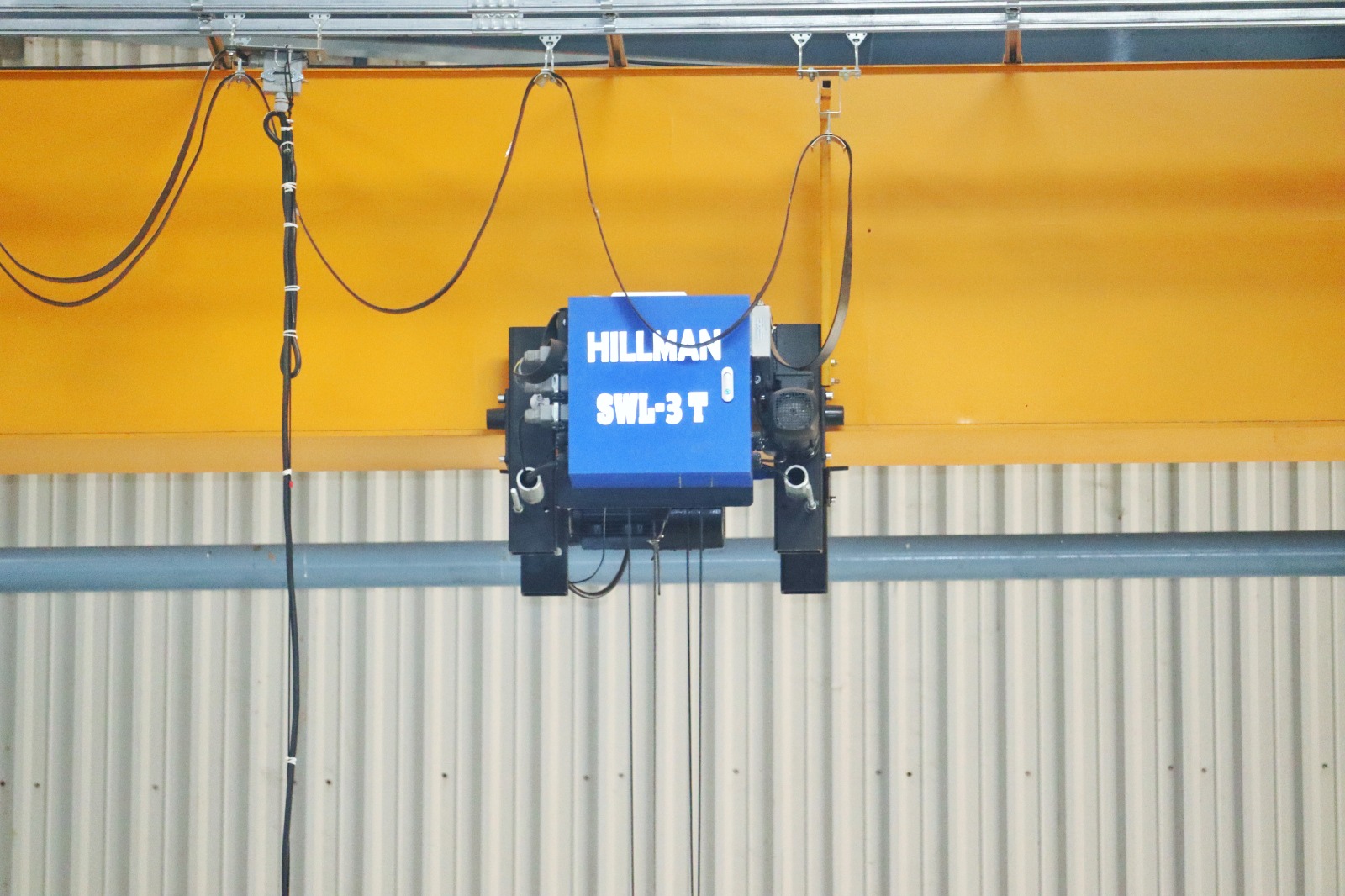

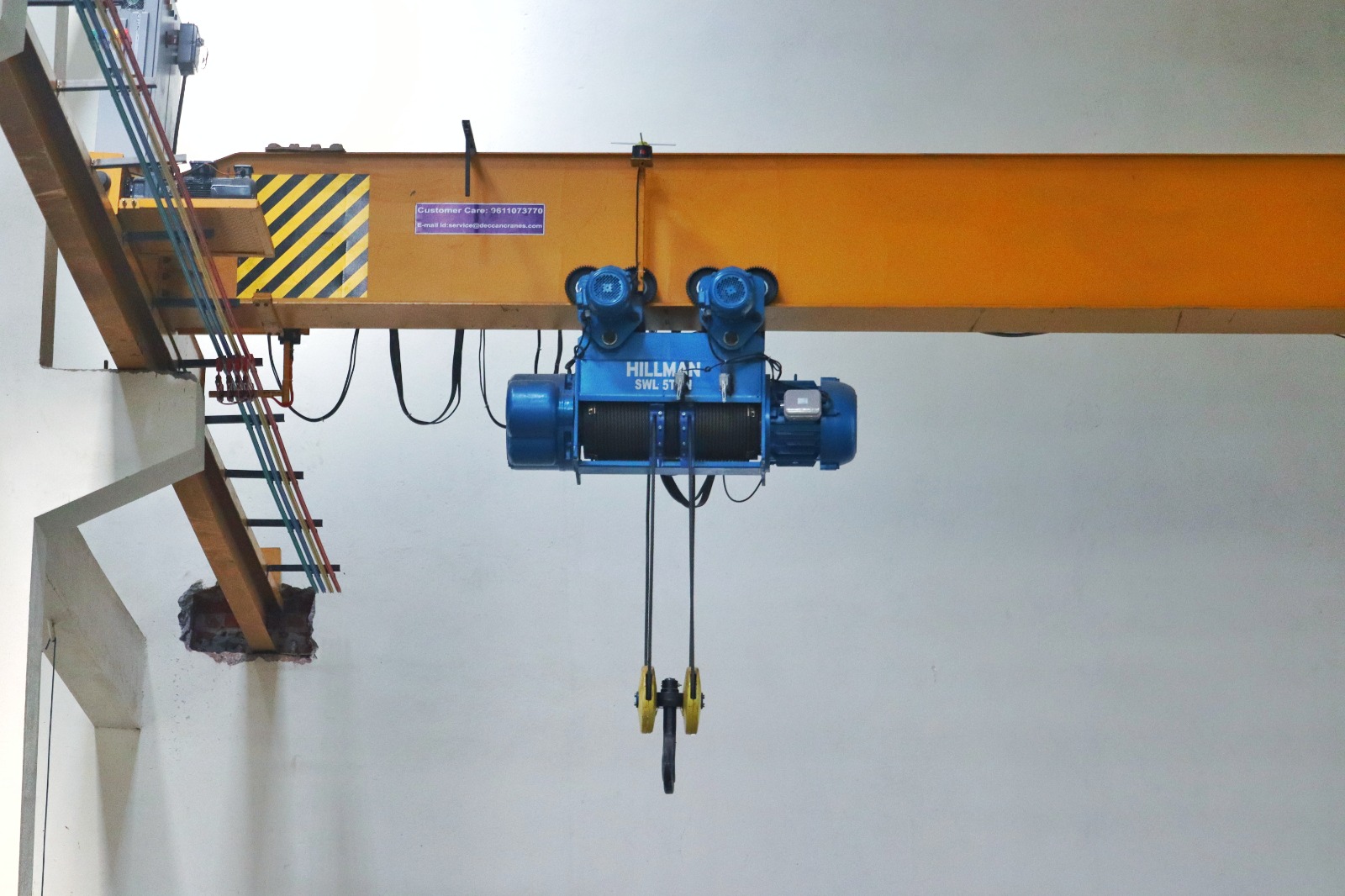

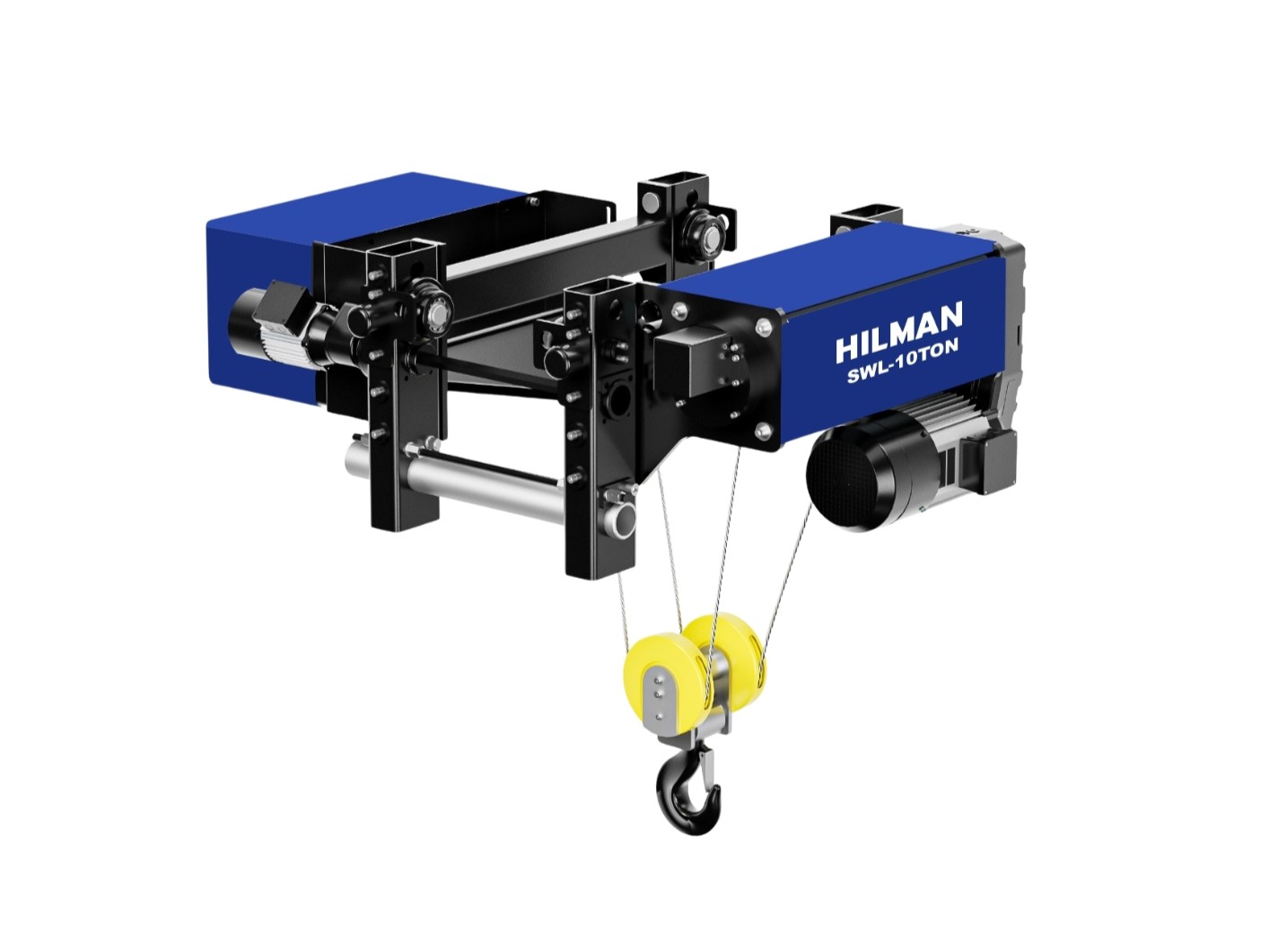

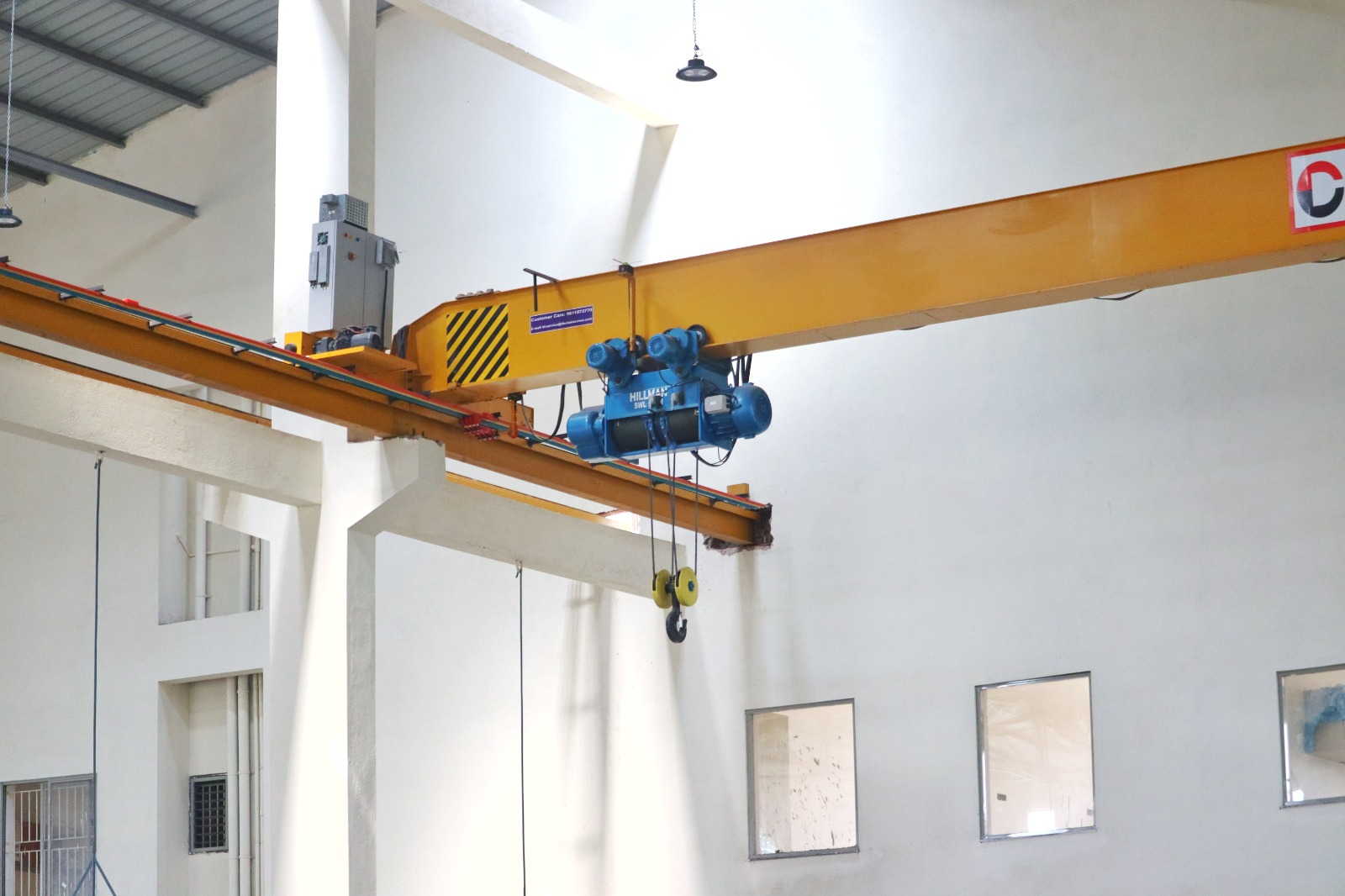

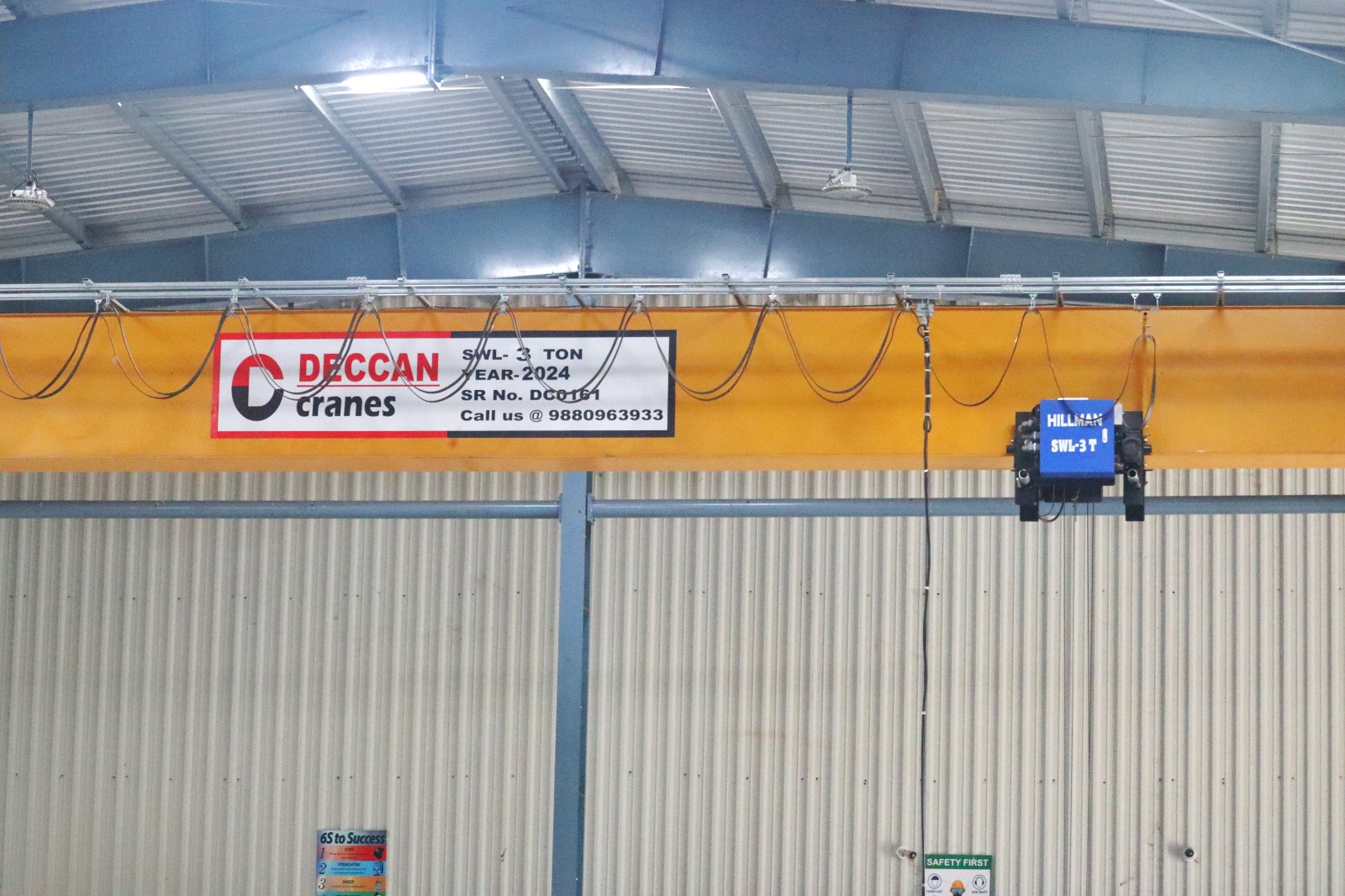

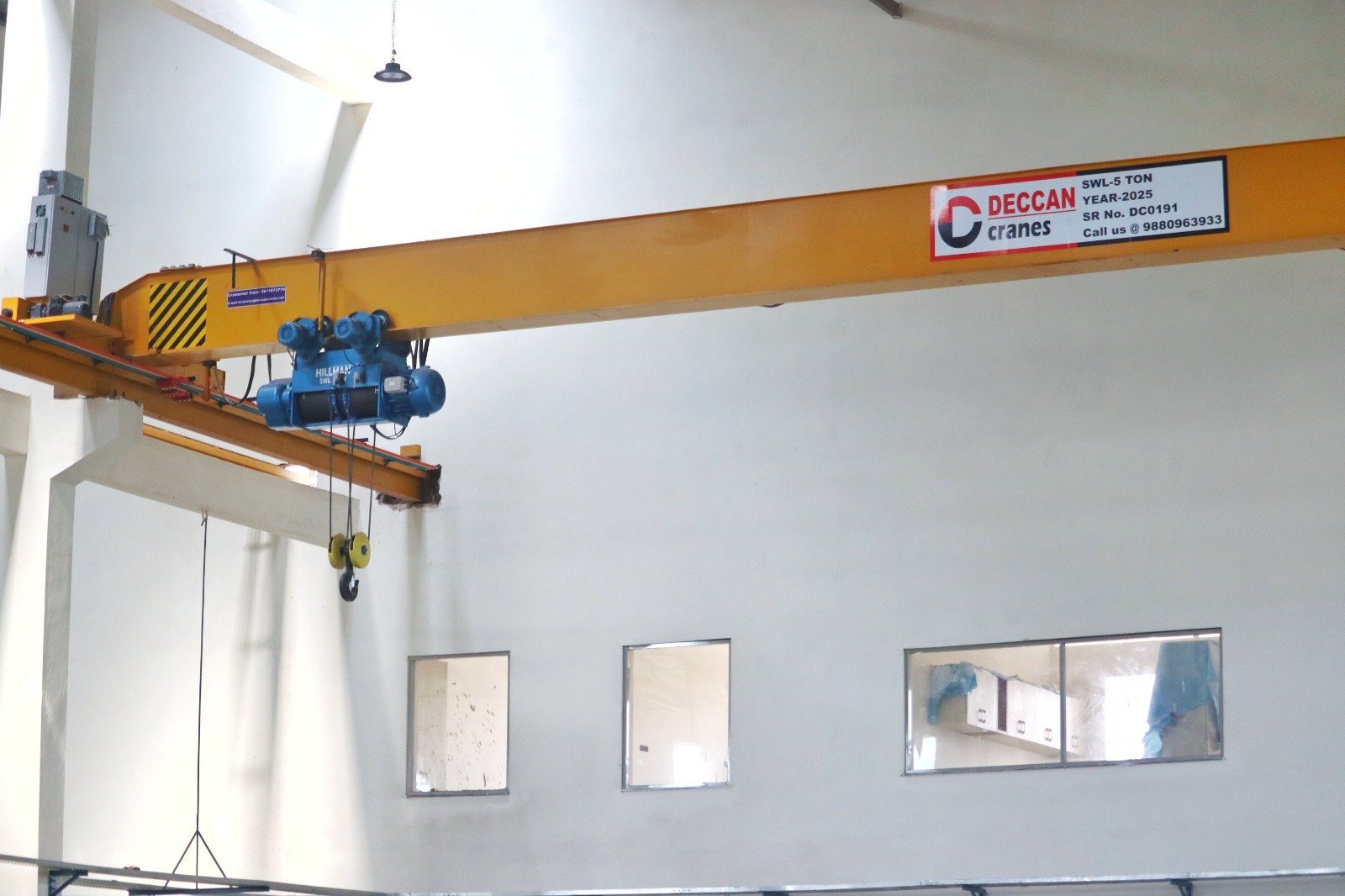

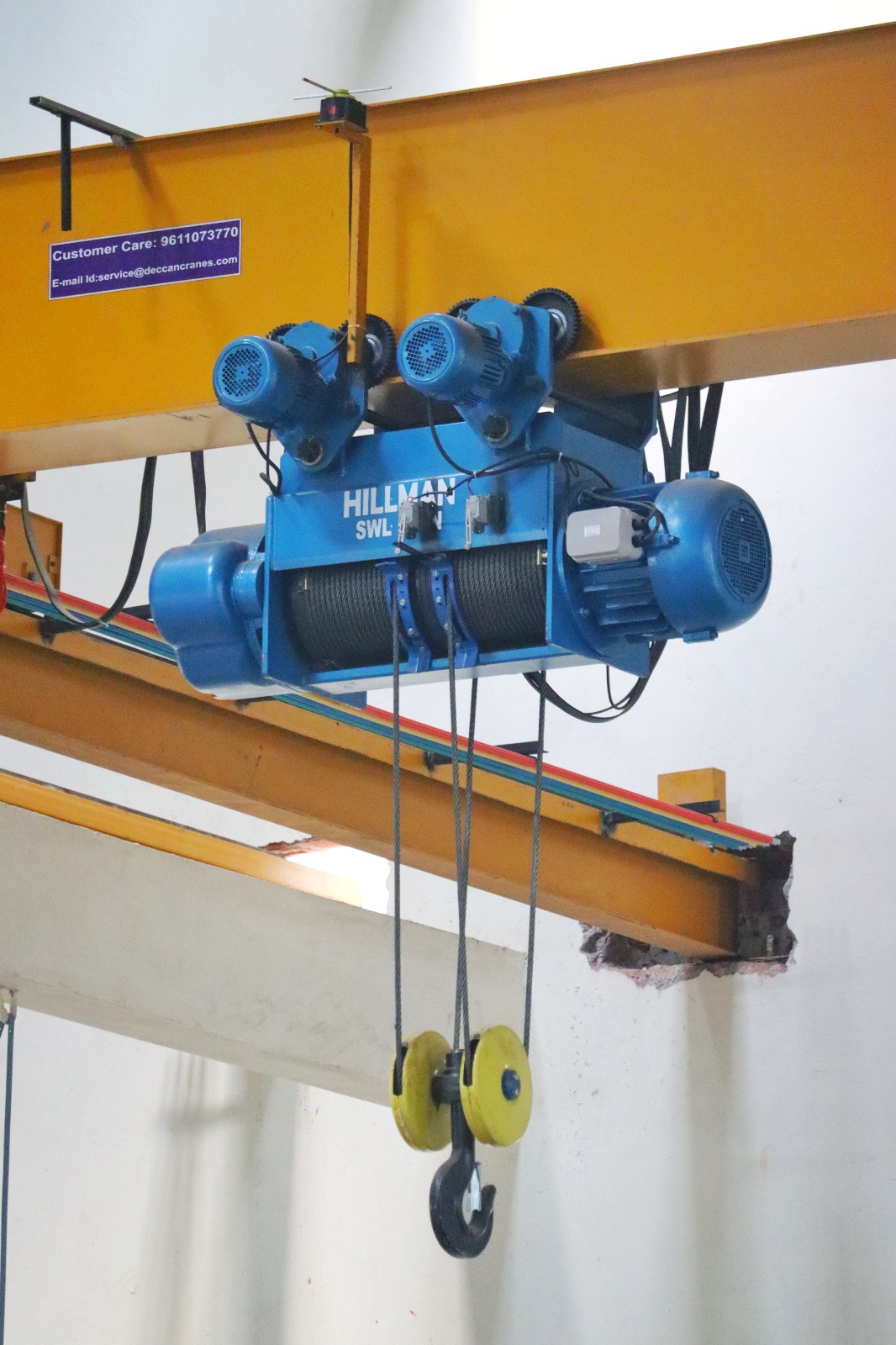

Hilman Electric Wire Rope Hoist

Hilman Electric Wire Rope Hoists are engineered for heavy-duty industrial lifting applications where safety, precision, and durability are critical. Designed with European-style engineering, these hoists deliver smooth operation, high efficiency, and long service life, making them ideal for continuous and demanding industrial environments.



Key Technical Specifications

Lifting Capacity

• 3.2 Tons to 80 Tons
• Suitable for light, medium, and heavy industrial loads

Lifting Height

• Standard lifting height up to 12 meters
• Higher lifting heights available on request

Hoist Configuration Types

• Single Girder Wire Rope Hoist (Up to 20T)
• Double Girder Wire Rope Hoist (Up to 80T)
• Low Headroom Hoist (Ideal for space-constrained facilities)
• Main & Auxiliary Hook Hoist (For precise load balancing)

Duty Class

• FEM / ISO M5 (Heavy Duty)
• Designed for frequent and continuous lifting operations



Electrical & Control System

• Power Supply: 3 Phase, 415V, 50Hz
• Control Voltage: 48V (safe low voltage control)
• Electrical system designed as modular architecture
• IP55 electrical enclosure for dust & moisture resistance
• Compatible with wire pendant control
• Fully compatible with industrial wireless & joystick remote control systems

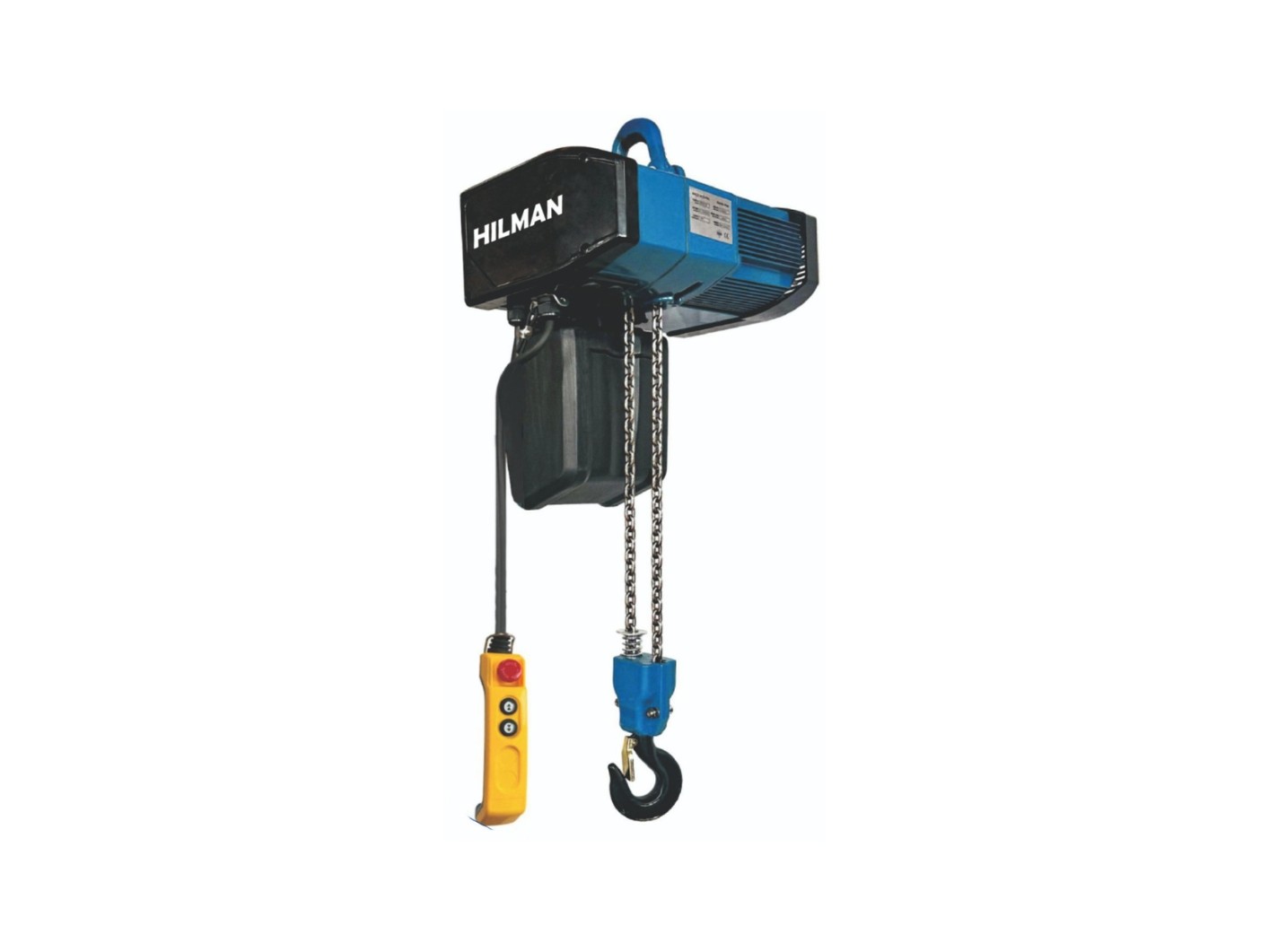

Hilman Electric Chain Hoist

The Hilman Electric Chain Hoist is engineered for safe, efficient, and precise material lifting in industrial environments. Designed with European-style precision, this hoist offers compact construction, smooth operation, and long-term durability—making it ideal for workshops, warehouses, assembly lines, and production facilities.



Key Technical Specifications

Lifting Capacity

• 0.25 Ton to 2 Tons
• Ideal for light to medium-duty industrial lifting

Lifting Height

• Standard lifting heights: 4 m to 8 m
• Custom lifting heights available on request

Hoist Configurations

• Hook Type Electric Chain Hoist – Easy installation and flexible mounting
• Trolley Mounted Electric Chain Hoist – Vertical lifting with horizontal travel

Duty Class

• ISO / FEM M5
• Suitable for frequent and continuous operation



Electrical & Control Specifications

• Power Supply: 3 Phase, 380V / 415V, 50Hz
• Control Voltage: 24V
• Operation Method: Pendant / Wire control
• Protection Class: IP55
• Modular electrical system for easy maintenance
• Compatible with industrial wireless remote control systems (optional)

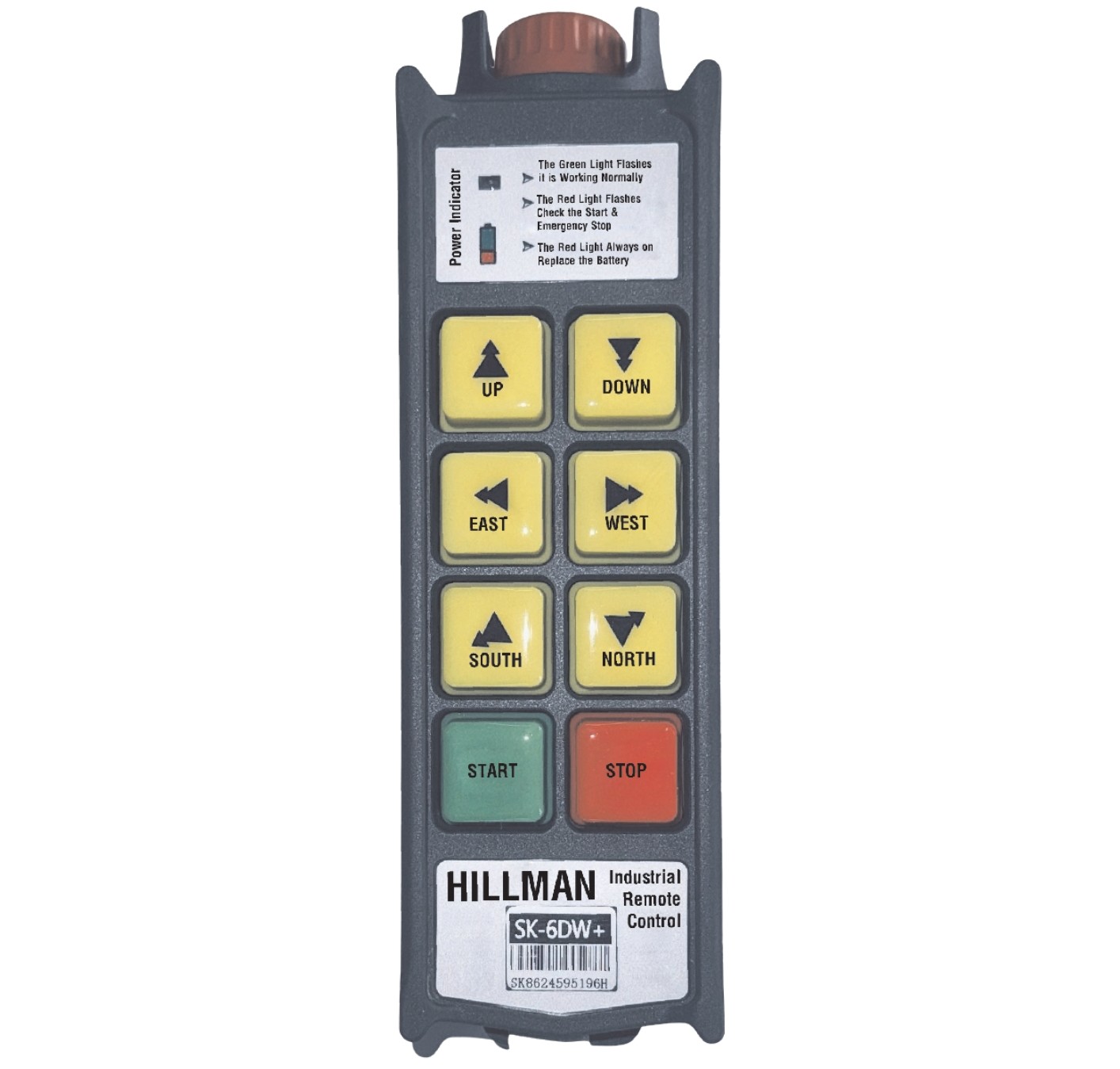

Hilman Remote Control System

The Hilman Industrial Wireless Remote Control System is designed to provide safe, precise, and flexible control of hoists, cranes, and material handling equipment. By allowing operators to control lifting and movement from a safe distance, the system significantly improves workplace safety, visibility, and productivity.



Key Technical Specifications

Control Range

• Effective operating range: Up to 100 meters
• Stable signal performance even in industrial interference zones

Operating Frequency

• 430–432 MHz / 433.05–434.79 MHz
• Multi-channel frequency hopping for interference resistance

Reaction Time

• ≤ 50 milliseconds
• Ensures real-time response and smooth equipment operation

Transmitter Specifications

• Ergonomic handheld design for operator comfort
• IP65 protection against dust and water
• High-strength glass-fiber reinforced nylon housing
• 2 dual-axis joysticks with multi-speed control
• Toggle switches and self-resetting push buttons
• Emergency stop button with fast response
• LED / LCD indicators for:
• Power status
• Signal strength
• Fault indication
• Rechargeable 7.4V lithium battery (5000mAh)
• Continuous working time: 8+ hours
• Operating temperature: –20°C to +65°C
• Low battery warning & alarm system

Receiver Specifications

• IP65-rated receiver enclosure
• Power supply options:
• 24–48V AC/DC
• 110–380V AC/DC
• Emergency stop relay output: 5A / 250V
• Receiver sensitivity: –155 dBm
• Built-in fault detection with LED status display
• Supports up to 34 control outputs
• Compact and easy-to-mount design

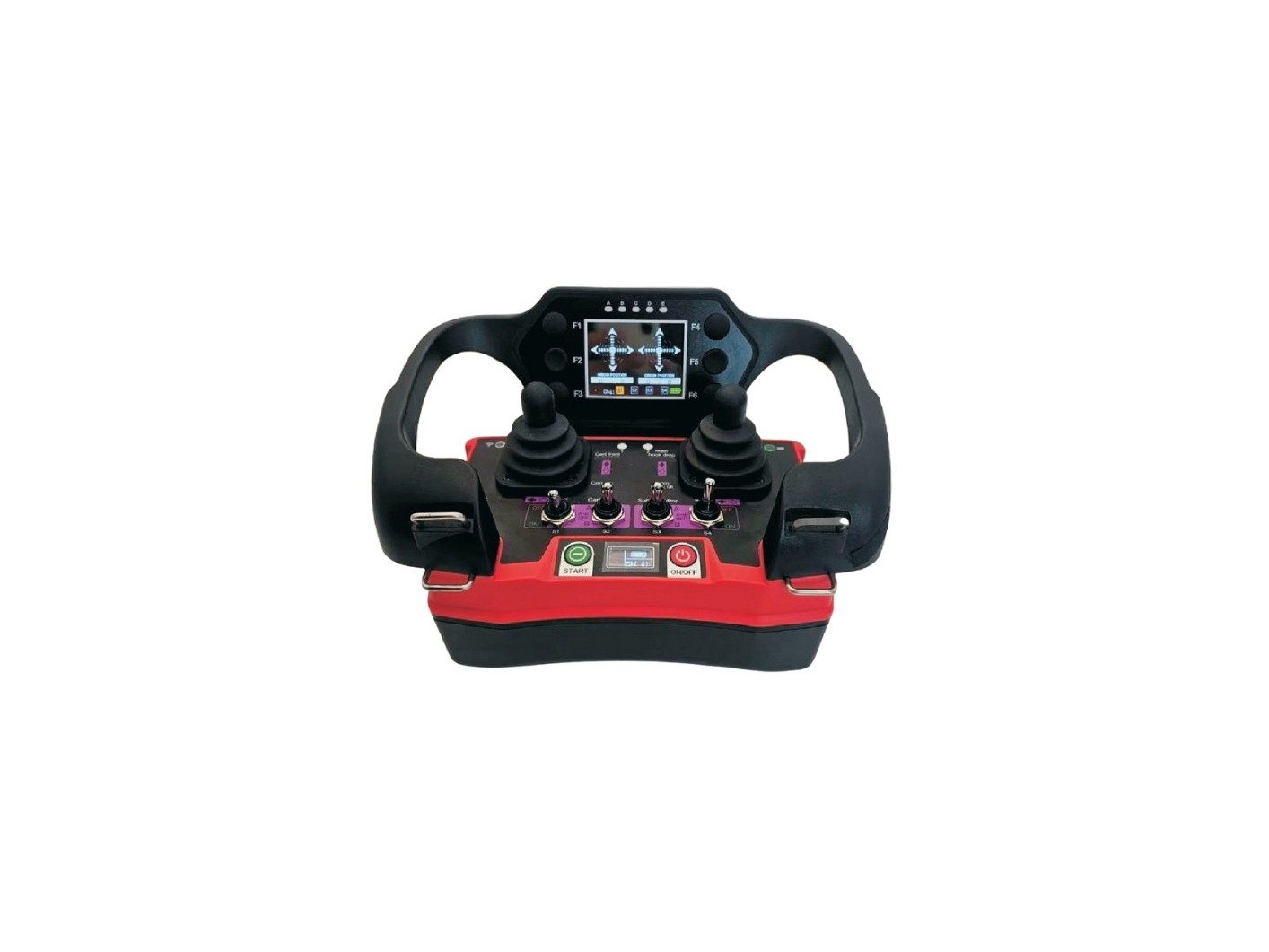

Hilman Joystick Radio Remote Control

The Hilman Joystick Radio Remote Control is designed to deliver accurate, smooth, and safe control of hoists, cranes, and material handling equipment. With an ergonomic joystick design and advanced wireless technology, operators can control lifting and movements from a safe distance, improving visibility, reducing fatigue, and enhancing overall workplace safety.



Key Technical Specifications (Customer-Ready)

Operating Range

• Effective wireless control distance: Up to 100 meters
• Stable communication even in high-interference industrial areas

Operating Frequency

• 430–432 MHz / 433.05–434.79 MHz
• Frequency hopping technology for interference resistance

Response Time

• ≤ 50 ms reaction time
• Smooth, real-time response between joystick movement and equipment action

Transmitter (Joystick Controller) Specifications

• Ergonomic handheld design for long operating shifts
• IP65 protection – dust-tight and water-resistant
• Housing: Glass fiber reinforced nylon (high impact strength)
• Dual-axis joysticks with multi-speed control (four-speed option)
• Toggle switches and self-resetting push buttons
• Emergency stop button with fast stop response
• LED / LCD indicators for power, signal, and fault status
• Rechargeable 7.4V lithium battery – 5000 mAh
• Continuous working time: 8+ hours
• Low battery warning and alarm
• Operating temperature: –20°C to +65°C
• Lightweight and balanced design for operator comfort

Receiver Specifications

• IP65-rated receiver enclosure
• Power supply options:
• 24–48V AC/DC
• 110–380V AC/DC
• Emergency stop relay output: 5A / 250V
• Receiver sensitivity: –155 dBm
• Supports up to 34 control outputs
• LED indicators for system status and fault detection
• Compact design for easy crane or hoist panel installation
